MULTI-FAMILY

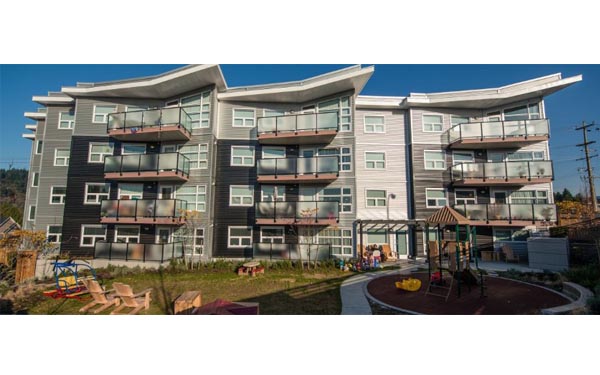

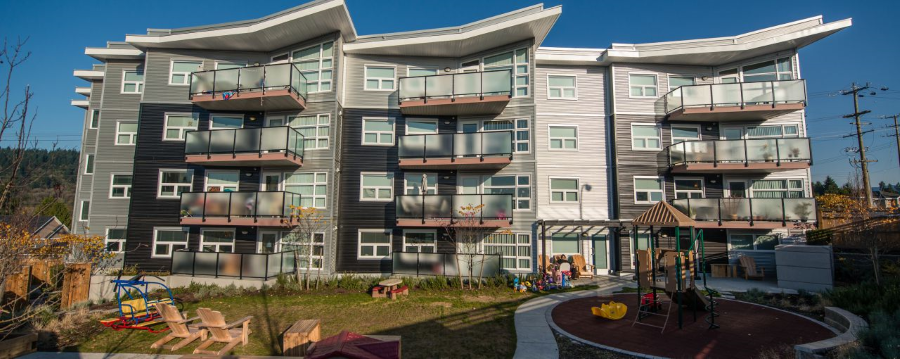

Semlin Gardens – Young Women’s Christian Association (YWCA) Metro Vancouver

Location: Vancouver, BC

Client: BC Housing

Mechanical Engineer: Impact Engineering

Minutes from the Broadway Skytrain Station, this 28-unit building provides 2- to 3-bedroom housing for single women and their dependent children. With its communal garden, outdoor play area for children, and amenity room, this building provides a sense of community to the single mothers and children that accommodate it. The facility also houses spaces for YWCA programs/services, community events, educational workshops, children’s programs, and a community kitchen.

HVAC Systems is proud to be part of this retrofit project that provides housing and community to single women and their children. HVAC Systems, Impact Engineering and Meridian Plumbing collaborated to design and implement a centralized heating system that supplies both domestic hot water and space heating to the building.

The workhorses of this system are the Colmac Waterheat CxA-10 and CxA-15, air-source heat pumps that boast parkade exhaust capabilities, intelligent defrost, unit interconnectivity for staging and lead/lag, and reduced footprints.

CxA

Each unit communicates with the next via PLC controller and BACnet, to coordinate lead/lag, staging and unit run-time. The control system also monitors the space heating and domestic hot water requirements to coordinate the fulfilment of each.

One unique feature that the CxA units provide is the ability to provide parkade exhaust. This grants the units a third purpose of expelling exhaust air from the parkade area – alleviating the requirement of a separate parkade exhaust fan.

HVAC Systems appreciates the opportunity to be a part of this great project and are excited to implement this multi-faceted system in future housing designs.

Kensington Gardens

Location: 2220 Kingsway, Vancouver, BC V5N 2T7

Client: Westbank Projects

Mechanical Engineer: Yoneda & Associates

Kensington Gardens is an integrated urban community comprised of three unique residential towers, a collection of townhouses and a residential podium linked by an elevated landscaped courtyard, a new park, lane and plaza. The principles in mind for this development are Landmark Plaza, Exciting Retail & Services, Supermarket, Premiere Asian Restaurant, Asian-Inspired Park, Public Art, Elevated Garden Courtyard, Urban Orchard, Playground and Landscaped Rooftop.

HVAC Systems is proud to be part of this as the project will be designed to achieve Leadership in Energy and Environmental Design (LEED®) Gold certification.

A key part of HVAC System’s design was the use of our Modular Chiller. Climacool® Simultaneous Heating Cooling with Full Heat Recovery, a total of 380 tons, allows each of the unique residential towers to take advantage of the heating and cooling demands. The key benefits to the chiller design are footprint, redundancy, sound and energy efficiency.

Broadway Tech Centre 5

brentwoood
Photos Courtesy of HVAC Systems

brentwood2

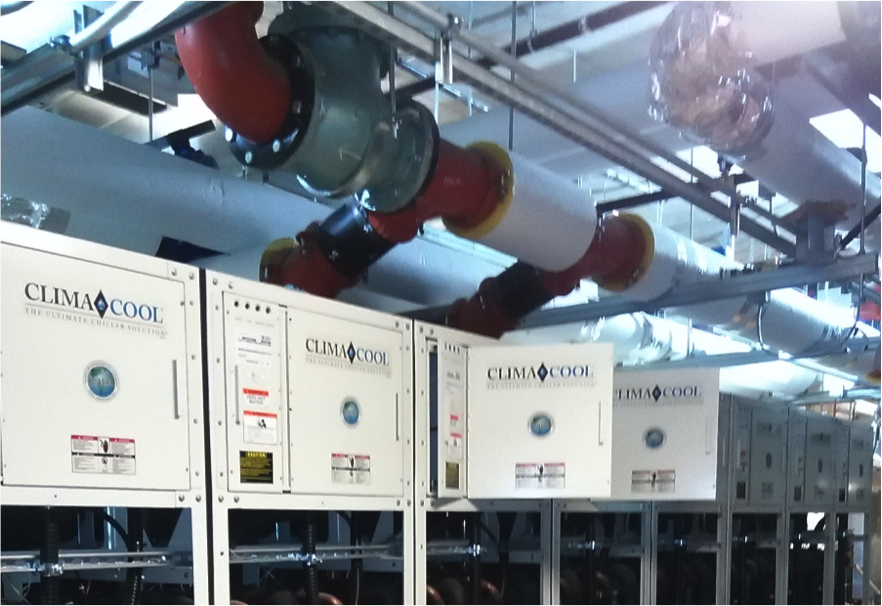

UBC Orchard Commons

ubc-orchard
Photo Courtesy of Larry Clarke, HVAC Systems

These buildings feature stunning architecture and design and a LEED Gold Certificate. Supplied with ClimaCool, Venmar, First Co. Fan Coils, Ref Plus, and Halton.
